Weldmark by Tweco

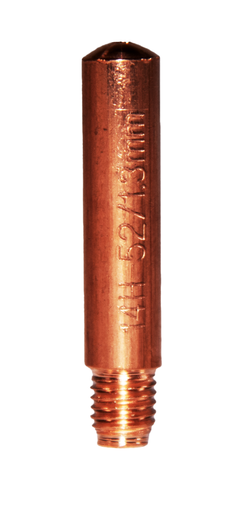

Weldmark by Tweco WEM WMK14H-52 Heavy Duty MIG Contact Tip 0.052 Inch Wire Size, Threaded, 1.5 Inch Length, Copper

Category Tips & Nozzles
14H-52.HG
Weldmark by Tweco

Weldmark by Tweco WEM WMK14H-52 Heavy Duty MIG Contact Tip 0.052 Inch Wire Size, Threaded, 1.5 Inch Length, Copper

Item Code: 14H-52.HG
Weldmark® by Tweco® Heavy Duty Contact Tip accommodates 0.052" wire and is perfect for use with 200 - 400 A Tweco® No.2, No.3 and No.4 MIG guns as well as specific MIG gun series. Contact tip with excellent electrical properties is ideal for use in heavy duty welding application up to 400 A. It features part number and wire diameter for easy identification. 1.50" Contact tip with 1/4"-28 UNF-2A thread size has 0.064" nominal ID and 0.25" OD. Contact tip is made from extruded or gun-drilled 122 DHP copper alloy and machined from a copper alloy tubing to offer a consistent as well as smooth surface of inside diameter with +/-0.003" tolerance. It has threaded style that ensures proper contact with a gas diffuser when installed to the MIG gun. It comes in slip-on or thread-on nozzle styles with a choice of diameter bore sizes. Contact tip locks in place when twisted and offers better electrical conductivity with increased surface contact. Contact tip features thick-walled design that acts like a heat sink conducting heat away from the arc source. It can be twisted quarter turn clockwise when tip wear point is reached that reveals a new wear point for doubling the life of the tip. Contact tip is sold as 25 per pack.
Category Tips & Nozzles
  • Easy identification - each contact tip is marked showing part no and wire diameter
  • Excellent electrical properties
  • Inside diameter tolerance is held to +/-.003 in
  • Threaded style contact tip to ensure proper contact with a gas diffuser when installed to the MIG gun
  • Machined from a copper alloy tubing providing a consistent and smooth inside diameter surface
  • Increased surface contact between contact tip/diffuser for better electrical conductivity

Fetching product details


Description

Weldmark® by Tweco® Heavy Duty Contact Tip accommodates 0.052" wire and is perfect for use with 200 - 400 A Tweco® No.2, No.3 and No.4 MIG guns as well as specific MIG gun series. Contact tip with excellent electrical properties is ideal for use in heavy duty welding application up to 400 A. It features part number and wire diameter for easy identification. 1.50" Contact tip with 1/4"-28 UNF-2A thread size has 0.064" nominal ID and 0.25" OD. Contact tip is made from extruded or gun-drilled 122 DHP copper alloy and machined from a copper alloy tubing to offer a consistent as well as smooth surface of inside diameter with +/-0.003" tolerance. It has threaded style that ensures proper contact with a gas diffuser when installed to the MIG gun. It comes in slip-on or thread-on nozzle styles with a choice of diameter bore sizes. Contact tip locks in place when twisted and offers better electrical conductivity with increased surface contact. Contact tip features thick-walled design that acts like a heat sink conducting heat away from the arc source. It can be twisted quarter turn clockwise when tip wear point is reached that reveals a new wear point for doubling the life of the tip. Contact tip is sold as 25 per pack.

Specifications

  • Amperage : 250-400 amp
  • Brand : Weldmark by Tweco
  • Category : Tips & Nozzles
  • Connection Type : Threaded
  • Country of Origin : United States
  • Duty : Heavy Duty
  • Length : 1-1/2 in
  • Material : Copper (122 DHP Copper Alloy)
  • MIG Gun Series : 250 Amp
  • Process : GMAW
  • Prop 65 Compliant : Yes
  • Thread Size : 1/4 - 28 Unf - 2A
  • Tip Bore Diameter : 0.064 in
  • Tip Style : 14H Series
  • Tip Type : Standard
  • Wire Diameter : 0.052 in
Add to quick list
